Understanding Your Calibration Frames in Astrophotography

The Importance of Calibration Frames

When you first get into astrophotography, it can feel overwhelming. Figuring out what gear you need, how to focus your telescope, or which deep-sky object to pursue can seem like half the battle. As you gain experience and take your first stack of images, you might notice something's off. Dust spots, uneven light, and strange glowing pixels can appear. That’s when you hear the phrase "calibration frames" and wonder if this hobby will ever get simpler. I put them off for so long, and I kind of got away with it... to an extent.

Calibration frames are the unsung heroes of astro imaging. They may not look pretty; in fact, they’re mostly black, grey, or just plain boring. However, what they do is often magical. They help clean up your final images by correcting imperfections in your camera sensor and optical path. Think of them as the deep clean your data deserves before you start stretching and tweaking.

What Are Calibration Frames?

Calibration frames are additional sets of images taken specifically to remove or correct known defects or inconsistencies in your imaging setup. There are three primary types:

• Dark frames

• Flat frames

• Bias frames




Each calibration frame plays a specific role, and together, they dramatically improve the quality of your final stacked image.

Dark Frames: Battling Sensor Noise

Every camera sensor produces heat, and with heat comes noise. Long exposures, like those used in astrophotography, can introduce various noise types—especially thermal noise and hot pixels. That’s where dark frames come in.

A dark frame is simply a photo taken with the same exposure time, ISO/gain, and temperature as your light frames (the actual images of the night sky), but with the lens cap or dust cover on. No light gets in; you’re just capturing the noise.

Dark frames allow you to identify and subtract this unwanted data. Once stacked into a "master dark," they’re applied to your light frames to eliminate:

• Hot pixels (those annoying tiny bright dots)

• Thermal noise patterns

• Amp glow (depending on your camera)




Most astrophotographers build a library of darks for different exposure times and reuse them—particularly if you have a cooled camera that maintains a consistent temperature. Some recommend redoing your darks every six months, but this might depend on your camera conditions.

Flat Frames: Correcting Uneven Illumination

Flat frames are taken to correct for vignetting (those darker corners), dust motes on your sensor or filters, and any uneven illumination across the frame. You’ve probably seen the effects—those weird dark donuts or subtle light fall-off that seems impossible to remove in post-processing.

To take a flat, aim your setup at a uniformly illuminated surface. Common techniques include:

• Using a white T-shirt stretched over the telescope during twilight

• Pointing at the dawn sky

• Using an LED light panel or dedicated flat field generator




Key things to remember:

• Keep the camera and telescope in the exact same setup as your light frames.

• Don’t change focus or image train at all.

• Keep exposure short but avoid clipping (histogram peak usually around 1/3 to 1/2).

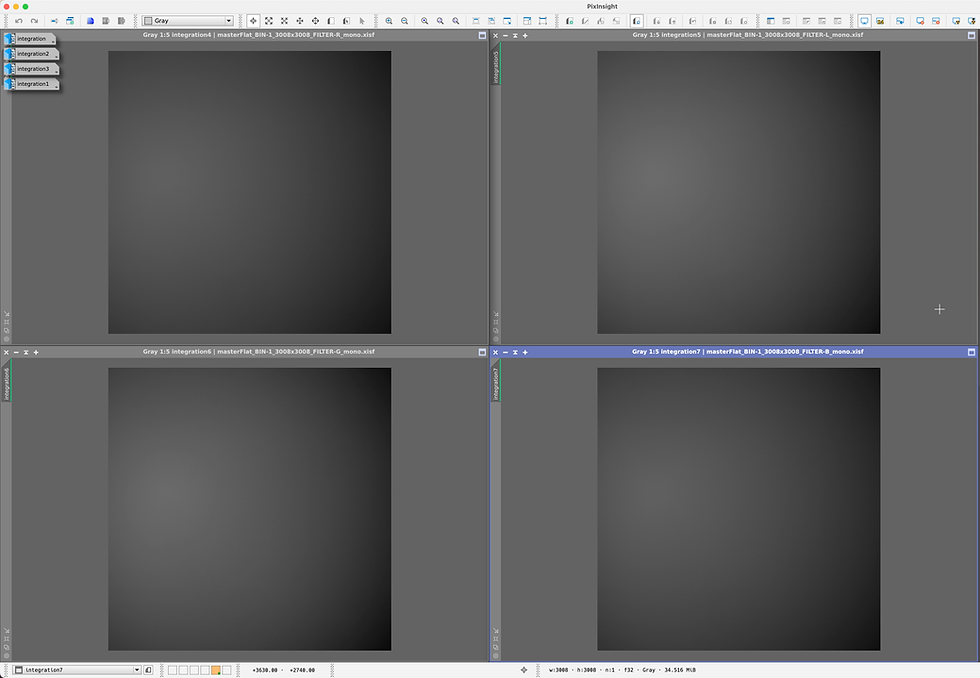

When you stack these flats into a master flat, you can correct:

• Vignetting

• Dust bunnies or shadows

• Uneven light due to reducers or filters




It’s one of the easiest ways to boost your image’s quality—and yet one of the most overlooked by beginners.

Bias Frames: Capturing Read Noise

Bias frames record the read noise—the electronic noise introduced when the sensor reads data. These are the fastest exposures your camera can take (often 1/8000s or faster), with the cap on.

While bias frames are less talked about these days—especially with CMOS sensors—they're still sometimes useful, especially if you’re using software that relies on them or working with scaled darks.

If you stack a set of these into a master bias, it can help:

• Correct for fixed-pattern noise in some workflows

• Improve calibration with certain stacking tools




That said, many modern workflows can skip bias if you’re already using well-matched darks.

Where Do They Go in the Workflow?

Most stacking software (PixInsight, DeepSkyStacker, AstroPixelProcessor) will have a calibration stage. You’ll input your light frames along with your master dark, master flat, and optionally, master bias.

The software applies these corrections before it does any alignment or integration. It essentially cleans your data before doing any heavy lifting.

A typical calibration flow might look like this:

1. Light frames — your actual night sky images.

2. Dark calibration — remove hot pixels and thermal noise. Programs like PixInsight are very good at removing hot pixels. Below is a typical dark frame from a cooled monochrome camera like the 533MMPro.

3. Flat correction — even out brightness and remove dust.

4. Bias (optional) — fine-tune sensor readout corrections.

5. Registration — align the stars across frames. If you’re using PixInsight, the software does this for you if you are using WBPP, for example.

6. Stacking — combine the data to reduce noise and improve detail.




The Case for Not Skipping Calibration Frames

You might hear people say, "I didn’t bother with flats" or "I’ll skip darks because it’s a cooled camera." But even with modern astronomy camera tech, calibration frames matter. They can be the difference between an image that looks clean and polished and one that has distracting artefacts.

Skipping calibration is a bit like building a house and not bothering to level the foundation.

Tips for Better Calibration Frames

1. Take enough frames: A good rule of thumb is 20–30 of each filter type. The more you stack, the cleaner the master calibration frame will be. While there may not be a strict cutoff point, more calibration frames generally help your final image.




2. Keep them separate: Store calibration libraries in a well-labelled folder structure so you can reuse them.




3. Matching settings: For darks and bias, settings must match your lights exactly. For flats, just keep the same focus and optical train.




Conclusion

Calibration frames are essential for improving the quality of your astrophotography images. They help eliminate noise and correct for imperfections, allowing you to achieve stunning results. By incorporating dark, flat, and bias frames into your workflow, you can elevate your astrophotography game. Remember, taking the time to properly calibrate your images will pay off in the long run.

Hope this helps someone just starting out. I used to cut corners, but I now consistently use calibration frames.
